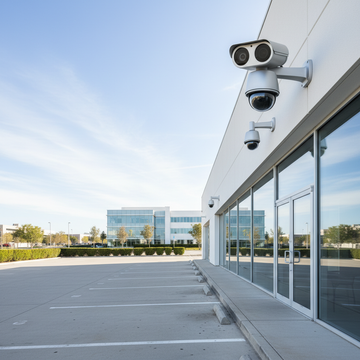

Dual Cameras: See More, Miss Less, Buy Smarter in 2026

Dual cameras are security cameras with two lenses in one housing that capture different views or focal lengths simultaneously. They increase coverage, reduce blind spots, and simplify installation for homes and businesses in the local area. For Alpha9 Solutions customers, dual‑lens IP options pair cleanly with NVR systems, PoE wiring, and mobile apps.

By Aayush Patel, CEO — Alpha9 Solutions
Last updated: May 20, 2026

Overview: dual cameras at a glance

Dual cameras combine two sensors in one body to deliver wider coverage, zoom detail, or stitched panoramas with fewer mounting points. You get more usable footage per install, easier cabling with PoE, and streamlined playback in the NVR—ideal for homes, small businesses, and facilities that want high coverage with minimal disruption.

Here’s the quick view of what you’ll learn and how to use it right away.

• What dual cameras are: two lenses, one housing; often wide + telephoto or dual wide for panoramas.
• Why they matter: cover more area with fewer devices, simplify cable runs, and reduce blind spots.
• How they work: PoE-powered IP cameras stream synced channels to your NVR for unified playback.
• Where they fit: driveways, storefronts, loading docks, long corridors, and corner lots.
• Setup essentials: Cat5e/Cat6 to 328 ft (100 m), weatherproof junction boxes, correct mounting height.
• Features to weigh: 4K resolution, Color Night Vision, smart motion detection, listen‑in audio, 30 FPS.

Want the foundational context on networked video? Scan our complete CCTV guide and this NVR explainer for recorder best practices.

What are dual cameras?

A dual camera is a single security device with two independent lenses and image sensors. Each lens can capture a different field of view or focal length, giving you either a wide panorama, a close-in telephoto view, or a stitched scene with fewer blind spots and fewer mounting points.

In practice, “dual cameras” (often called dual‑lens or dual‑sensor) pack two perspectives where you’d normally mount two separate cameras. That means fewer penetrations in siding, less conduit, and a simpler NVR channel map.

• Common pairings:
  • Wide + telephoto (overview plus detail on the same scene)
  • Dual wide (stereo or panoramic stitching up to 180°)
  • Day/Night sensor pairings for balanced low‑light performance
• IP-first workflow: Power over Ethernet (PoE) delivers both power and data to one housing.
• Recorder behavior: Many NVRs treat each lens as a discrete channel for archiving and search.

Because each lens is optimized for a role, you can capture license‑plate detail and full‑scene context simultaneously. For homeowners and small businesses, that’s a practical way to “see more with less.”

Why dual cameras matter for homes and businesses

Dual cameras improve coverage, evidence quality, and installation efficiency. One PoE drop can deliver both a wide overview and a detail shot, reducing blind spots and simplifying cable runs. The result is clearer incident reconstruction, fewer devices to maintain, and less disruption during setup.

Here’s why the approach resonates with Alpha9 Solutions customers who value safety and fast, neat work.

• Wider coverage per mount: One housing can watch a driveway and zoom on the sidewalk simultaneously.
• Cleaner installs: Fewer soffit penetrations, one outdoor junction box, and one Cat6 backhaul.
• Higher evidence value: Context view preserves timeline, telephoto preserves faces or plates.
• Better night video: Pair dual lenses with Color Night Vision and smart IR to reduce motion blur.
• Lower channel sprawl: Your NVR grid stays manageable; searching by time/event gets faster.

If you’re weighing where dual‑lens models beat singles, our home camera primer breaks down typical entry points, corners, and sightline issues for residential layouts.

How dual‑lens IP cameras work

Dual‑lens IP cameras host two sensors on one network address and typically stream each lens as its own channel to the NVR. PoE powers the device up to 328 ft (100 m) over Cat5e/Cat6, while onboard logic syncs timestamps so wide and telephoto clips align during review.

Under the hood, a dual‑lens unit behaves like a small cluster of cameras with shared compute. For most setups we design, that means one cable, one PoE port, and either one or two logical channels in your recorder.

• Power & data: PoE (IEEE 802.3af) or PoE+ (802.3at) supply 15–30 W at the switch; check draw specs.
• Bandwidth planning: Two 4K streams can exceed 16–24 Mbps; modern NVRs handle this comfortably with H.265.
• Frame rates: Many dual units deliver 20–30 FPS per lens; prioritize 30 FPS where motion detail matters.
• Stitching modes: Some models create a 180° panoramic scene alongside an independent detail channel.
• Events & AI: Smart motion detection, person/vehicle filters, and listen‑in audio reduce false alerts.

Tip: If your longest cable run approaches 328 ft, ePoE or extenders can bridge longer distances. We also recommend using shielded RJ45s outdoors with a proper drip loop into a weather‑rated box.

Types of dual‑lens setups and when to use them

Choose dual‑lens configurations based on the job: wide + tele for entryways, dual wide for corners and parking lots, or stitched panoramas for long corridors. Match the housing—bullet, dome, or turret—to mounting height, vandal risk, and weather exposure.

Different dual implementations solve different problems. Here are the popular approaches we specify and why.

Common dual‑lens patterns

• Wide + telephoto (most versatile): Monitor a storefront and pull plates at the curb in one shot.
• Dual wide (panorama): Merge two 4 MP or 8 MP sensors for a 160–180° view across a lot or yard.
• Opposed corridors: Face lenses opposite each other to watch both directions of a hallway or fence line.
• Day/Night pairing: Combine a low‑light sensor with a standard sensor for consistent dusk footage.

Pick the right housing

• Bullet: Highly visible deterrent; easy to angle; good for eaves and wall mounts.
• Dome: Vandal‑resistant; discreet; better for lower heights and public-facing interiors.
• Turret: Flexible aim with fewer IR reflections; a favorite for soffits and corners.

Lens control and zoom

• Motorized varifocal: Remotely adjust focal length to frame plates or doorways without a ladder.
• Fixed wide + fixed tele: Set‑and‑forget for standard driveways, loading bays, and long yards.

Need a refresher on single‑lens form factors before you choose? Our video surveillance system guide outlines where bullet, dome, and turret shine.

Quick comparison (modes vs. best use)

If you’re balancing features and budget, skim our affordable security cameras guide for a high‑value shortlist.

Best practices for planning, wiring, and placement

Plan dual‑lens placements by objective (ID, overview, or deterrence), then map PoE runs under 328 ft with weather‑rated junction boxes and drip loops. Mount 9–12 ft high for faces, aim IR away from walls, and use smart motion filters to cut false alerts.

In our experience, clean design decisions up front pay off in years of clearer footage and fewer truck rolls. Use this checklist while you plan.

Positioning and field of view

• Mounting height: 9–12 ft balances face capture and vandal resistance for most homes and storefronts.
• Angle of view: Keep the wide lens at 2/3 horizon for context; frame the telephoto on the choke point.
• Avoid blowback: Don’t aim IR directly at white walls, soffits, or shrubs to prevent glare.
• Corner coverage: Dual wide or a 180° stitch eliminates the classic “corner blind spot.”

Cabling and protection

• Run limits: PoE to 328 ft (100 m) on Cat5e/Cat6; consider ePoE or extenders for longer routes.
• Weatherproofing: Use an outdoor junction box; route a drip loop; seal with UV‑rated fittings.
• Wire concealment: Tuck cable along trim channels; choose paintable conduit for exposed spans.
• Grounding & surge: Add surge protection to PoE switches in lightning‑prone regions.

Recorder and settings

• NVR channels: Verify whether your model counts each lens as a separate channel.
• Bitrate & FPS: Start at H.265, 15–20 Mbps for 4K scenes you care about, 20–30 FPS for motion clarity.
• Smart detection: Enable person/vehicle filters and exclude trees, roads, and busy sidewalks.
• Audio: Use listen‑in audio only where appropriate; always respect privacy signage requirements.

Local considerations for your area

• Seasonal storms can stress exterior cable runs—plan a sheltered path and include drip loops and sealant on all boxes.
• Holiday rush periods increase foot traffic; favor wide + tele at entries to capture both crowd flow and individual detail.

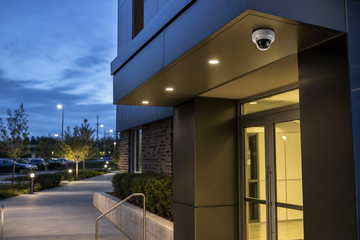

• For mixed residential‑commercial blocks, prioritize vandal‑resistant housings and concealed conduit along shared alleys.

For a step‑by‑step viewpoint on physical install tasks, this concise CCTV installation guide outlines typical mounting and wiring flow for reference.

Features that matter: resolution, AI, and night vision

Prioritize 4K sensors for detail, Color Night Vision for low‑light accuracy, and smart motion detection to focus alerts on people and vehicles. Pair with 30 FPS when motion is fast, and consider listen‑in audio to add context where policy allows.

Dual‑lens cameras amplify the value of good components. Here’s our short list of features that deliver real‑world gains.

• 4K resolution (8.3 MP): Preserves fine detail that 1080p often misses at distance.
• Color Night Vision: Maintains color under modest ambient light—key for clothing or vehicle IDs.
• Smart motion detection: Use person/vehicle filtering and line‑crossing rules to suppress noise.
• 30 FPS recording: A smoother motion track helps with fast vehicles and quick door movements.
• Listen‑in audio: Adds context like voices or vehicle sounds; disable in spaces with privacy concerns.
• Motorized varifocal lens: Dial‑in focal length post‑install to perfect framing without a ladder.

If you’re curious about how AI classification improves alert quality, this plain‑English overview of AI‑powered security systems is a useful primer on practical detection logic.

Shopping for your first system? Our CCTV surveillance overview and home CCTV systems article provide more context on matching features to entrances, yards, and garages.

Tools and resources to get it right

Use an NVR that supports dual‑channel mapping, a managed PoE switch with spare power budget, outdoor junction boxes, and Cat6 cabling with weather‑rated terminations. A basic kit—cable tester, punch‑down tool, and crimper—prevents avoidable issues post‑install.

Alpha9 Solutions blends hands‑on service with a curated store, so we focus on gear that speeds up safe, tidy installs.

• NVRs: Match channels to your lens count; see our NVR buying guide for model considerations.
• PoE & ePoE: Favor PoE+ for headroom; ePoE/extenders for long exterior runs.
• Junction boxes: Weather‑rated, with gaskets and room for service loops and connectors.
• Cabling: Solid‑copper Cat6 for exterior pulls; keep bends > 1 in radius to protect pairs.
• Apps: Remote viewing and alerts via mobile keep you informed during off‑hours.
• Checklists: Before going live, verify time sync, detection zones, and retention days.

If you prefer a quick primer before deciding, our Vision CCTV guide covers ecosystem basics from camera selection to monitoring habits.

Real‑world examples and mini case studies

Dual‑lens deployments shine where one mount must do two jobs. Typical wins include a corner camera delivering a 180° yard view plus a door zoom, or a dock camera that watches the bay while capturing plates on the access road.

We regularly advise homeowners, shop owners, and facility managers who want broader coverage without cluttering the fascia with hardware. These quick scenarios illustrate the approach.

Home driveway + porch combo

• Goal: Watch packages on the porch and vehicle movement on the driveway.
• Solution: Dual wide + tele; mount at 10 ft under the soffit; route PoE through an outdoor box.
• Outcome: One mount covers two tasks—no extra holes; 30 FPS keeps motion blur low.

Retail storefront + curb lane

• Goal: See storefront traffic while capturing plates for curbside pickup accountability.
• Solution: Wide + tele; person/vehicle detection enabled; Color Night Vision for evening trade.
• Outcome: Faster incident review thanks to synced clips and filtered alerts.

Warehouse dock + fence line

• Goal: Monitor pallets at the dock and approach vehicles along a long fence.
• Solution: Opposed‑lens layout; ePoE for the long pull; turret housing to reduce IR glare.
• Outcome: Full‑scene context with plate‑level detail—on a single PoE drop.

For a quick example of small‑business installation flow, here’s a concise walk‑through of a CCTV install that mirrors how we stage ladders, tools, and cabling runs.

Frequently asked questions about dual cameras

Dual‑lens cameras reduce mounts and blind spots by pairing two views in one unit. They connect over PoE like standard IP cameras, and most NVRs record each lens as its own channel for easier search and playback.

Key takeaways and next steps

Dual cameras let you cover more with fewer mounts, especially at entries, corners, and docks. Prioritize 4K sensors, Color Night Vision, and smart motion, then plan PoE runs and weather protection. When in doubt, start with one strategic dual‑lens install and expand from there.

• Start with objectives: Decide if you need overview, ID detail, or both in one spot.
• Pick the pattern: Wide + tele for entries, dual wide for corners, opposed for corridors.
• Mind the basics: Cat6 to 328 ft, weather‑rated boxes, clean detection zones, 30 FPS where motion matters.
• Learn the ecosystem: Read our CCTV guide and NVR overview to plan channel counts and retention.

Need a hand? Alpha9 Solutions pairs certified low‑voltage expertise with a curated lineup of dual‑lens IP cameras, junction boxes, and NVRs. Tell us about your driveway, storefront, or dock, and we’ll propose a tidy, minimal‑disruption layout that meets your goals.
