How to Plan Network Cabling to Meet Standards and Support Future Growth
by Aayush Patel on Oct 03, 2026
Network cabling standards are not one universal cable specification. They are a framework for planning compatible materials, organized pathways, suitable terminations, testing, labeling, documentation, and coordination with the building and its connected systems.
The strongest plan starts before installation. Define every endpoint, choose copper or fiber for the actual layout, reserve accessible pathways, coordinate low-voltage work with electrical systems, and make testing records part of the project scope.
Quick summary
- Inventory rooms, devices, cameras, access points, phones, and future connection points before choosing cable.
- Compare copper and fiber according to equipment locations, environment, expansion plans, and compatibility.
- Plan central equipment spaces, pathways, service access, ventilation, and separation from power wiring.
- Require consistent terminations, cable testing, labels, port maps, and as-built documentation.
- Confirm project-specific electrical, building, permit, and inspection requirements with the relevant authority.
What network cabling standards actually cover
A standard provides a consistent basis for designing and installing communications infrastructure. A project specification turns that framework into decisions about cable types, pathways, equipment spaces, terminations, testing, and handoff documents. Local codes and permit requirements are separate considerations that may affect the work.
The State of Tennessee describes adopted infrastructure standards for communications installations involving voice, data, and video over copper, fiber optics, coaxial cable, and wireless systems. That breadth matters because a modern project may support more than computers. It may also carry camera feeds, access points, phones, access control, alarms, and other connected systems. Tennessee’s premise cabling document provides a useful official reference point for standards-based infrastructure planning.
Electrical code is another layer. Tennessee publishes official electrical-code resources, including material concerning the 2023 National Electrical Code. Use those resources, the project professional, and the authority having jurisdiction to verify requirements instead of treating general cabling advice as a universal code rule. Tennessee electrical-code information can help guide that verification.
Step 1: Inventory every endpoint and system
Begin with a room-by-room or area-by-area inventory. List workstations, printers, phones, wireless access points, network closets, point-of-sale equipment, conference-room devices, cameras, NVRs, access control equipment, alarm interfaces, and any other endpoint that may need data or Power over Ethernet.
Record more than the device name. For each endpoint, note its location, intended use, whether it needs power over the network, the equipment or room it must connect to, and whether the location may change. Include future work areas and spare capacity where the building would be difficult to reopen later.
A simple worksheet can include these columns: endpoint ID, room or area, device type, connection type, destination equipment space, pathway, power requirement, installation status, and test result. This inventory becomes the foundation for cable quantities, switch capacity, port mapping, and future troubleshooting. For additional planning context, review these network cabling best practices before finalizing a standards-based design.
Step 2: Choose copper, fiber, or both
Copper and fiber are not competing answers for every project. They often serve different parts of the same infrastructure. The decision should reflect the distance between equipment, building layout, installation environment, expansion plans, termination approach, and the equipment available at each end.
| Planning consideration | Copper | Fiber |
|---|---|---|
| Typical planning role | Often considered for connections within a room, floor, or nearby equipment area, depending on the design. | Often considered for links between separated equipment areas or where a fiber backbone is appropriate. |
| Installation focus | Review cable category, pathway conditions, terminations, equipment compatibility, and support methods. | Review fiber type, connectors, handling, termination, testing, and equipment at both ends. |
| Future needs | Reserve pathway capacity for additional runs or changing endpoint locations. | Consider additional strands, spare pathways, future equipment, and long-term service access. |
| System coordination | Coordinate endpoint connections, network equipment, and shared pathways with other low-voltage systems. | Coordinate backbone routes, termination locations, equipment spaces, and transitions to connected equipment. |
Do not choose a medium solely because it is familiar or because it appears more advanced. Ask the installer to explain how each option fits the building, the connected equipment, the maintenance plan, and expected changes. The best design may use copper for endpoint runs and fiber for selected links, but the final choice depends on the project scope.
Step 3: Plan pathways, equipment spaces, and access
Map the route from each endpoint to the equipment space before any cable is pulled. Identify ceilings, walls, risers, sleeves, trays, conduit, raceways, and other pathway conditions. A route that works during construction may become difficult to service if it is crowded, inaccessible, or hidden behind finished surfaces.
Choose a central equipment location or locations with room for patch panels, switches, recorders, power equipment, and future additions. Plan ventilation, safe power, working clearance, and access for technicians. In a home, this may be a structured media panel or utility area. In a commercial or industrial facility, it may involve one or more racks, closets, or equipment rooms.
Future expansion should be planned physically, not only mentioned in a proposal. Spare conduit, a pull string, additional pathway capacity, and accessible routes can make later changes less disruptive. Residential installations also benefit from low-voltage house wiring plans that identify central equipment locations, protected pathways, and separation from power wiring.
Step 4: Coordinate low-voltage cabling with electrical work
Network cabling often shares walls, ceilings, equipment rooms, and construction schedules with electrical work. Coordinate routes early so low-voltage cable is protected, serviceable, and not placed in an unsuitable or congested pathway.
Keep low-voltage cabling away from line-voltage wiring where the installation requires separation, and plan crossings and pathway arrangements with the applicable code and project conditions in mind. General advice about spacing is not a substitute for an approved design because the correct method can depend on the building, pathway, cable type, shielding, and surrounding systems.
Ask who is responsible for sleeves, firestopping, conduit, cable supports, penetrations, grounding, equipment power, and access after other trades finish. These handoffs should be written into the scope. Unclear responsibility is a common source of incomplete pathways and difficult service work.
Step 5: Specify termination and testing before installation
Testing should be part of the original scope, not an optional task added after a problem appears. Require the contractor to state how runs will be terminated, identified, tested, and recorded. The method should be appropriate to the selected cable, connection type, and project requirements.
At minimum, the handoff should identify each run, its endpoints, its result, and any exception. A failed or incomplete run should not disappear into a general statement that the system was tested. Ask how the contractor will handle inaccessible cables, damaged terminations, incorrect labels, and runs that do not meet the agreed requirements.
Testing records are especially valuable when a network supports cameras, access control, business operations, or equipment that may be difficult to diagnose from the user interface. They provide a baseline for future service and help separate a cabling problem from a device, switch, configuration, or power problem.
Step 6: Label, map, and document the finished system

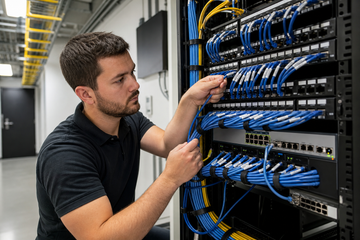

Labels should be consistent and readable at both ends of every cable. Use an ID that connects the endpoint, patch-panel position, switch port, room, or camera number. Avoid labels that only make sense to the installer unless that naming system is also included in the project documents.
Request a handoff package containing cable IDs, endpoint locations, patch-panel and switch-port maps, equipment-room details, test records, pathway notes, photographs where useful, and changes made during construction. For security systems, include camera identifiers, recorder connections, and relevant network equipment.
As-built documentation should describe what was actually installed, not only what appeared in the original proposal. Clear records reduce troubleshooting time, support future additions, and make responsibility easier to understand when several contractors or tenants use the same infrastructure.
Step 7: Coordinate cabling with PoE cameras and security systems
When network cabling supports IP cameras, the design must account for both data connectivity and power delivery. Identify every camera endpoint, the switch or equipment space serving it, the NVR location, and any pathway or environmental concern at the mounting point.
Review the PoE switch capacity against the connected devices and allow room for the system’s actual operating needs. Also plan equipment access, backup power where appropriate, network addressing, remote access controls, and documentation. A camera may have a clear view but still provide unreliable service if its cable path, switch capacity, network configuration, or equipment location is poorly planned.
Security systems may share infrastructure with business data, but they should be coordinated deliberately. Network segmentation, predictable addressing, secure remote access, and a camera-by-camera port map are planning considerations, not afterthoughts. For more detail on the relationship between network infrastructure and surveillance, review PoE cabling standards and the related camera-network planning considerations.
Step 8: Verify Tennessee and Kingston requirements
Permit and inspection requirements can depend on the work’s scope. A project involving only certain low-voltage pathways may be treated differently from one that includes electrical work, structural changes, penetrations, new equipment power, or other building modifications.
Do not assume that every network cabling project requires a permit, and do not assume that none does. Before work begins, ask which authority has jurisdiction, who will confirm the requirements, who will obtain permits if needed, and who will schedule inspections. The City of Kingston permit information is an appropriate starting point for project-specific questions in Kingston.
Network cabling contractor checklist
Before approving a proposal, ask for clear answers to these questions:
- Has every current and planned endpoint been identified?
- Why is copper, fiber, or a combination appropriate for each portion of the system?
- Does the proposal show pathways, equipment spaces, access, and future capacity?
- How will low-voltage cabling be coordinated with electrical work and other trades?
- What termination method and testing process are included?
- Will every cable be labeled at both ends?
- Will you receive test records, port maps, endpoint schedules, and as-built documents?
- How will PoE cameras, NVRs, access control, alarms, and remote monitoring be documented?
- Who is responsible for permits, inspections, firestopping, penetrations, and final handoff?
Frequently asked questions
Do network cabling projects always require a permit in Kingston, Tennessee?
No universal answer applies to every project. Requirements may depend on the building work, pathways, electrical scope, equipment power, and the authority having jurisdiction. Confirm the project details with Kingston or the applicable local authority before installation.
Should a small business use copper, fiber, or both for structured cabling?
That depends on the building layout, equipment locations, pathway conditions, expansion plans, and the devices being connected. Copper may be considered for many endpoint connections, while fiber may be considered for selected links between equipment areas. A site-specific design can also use both.
What documentation should a cabling contractor provide at project handoff?
Request cable labels and IDs, endpoint locations, patch-panel and switch-port maps, test records, equipment-space details, pathway notes, photographs where useful, and as-built changes. If cameras or other security systems are included, request their connections and identifiers in the same handoff package.
How should network cabling be planned for PoE security cameras?
Inventory each camera location, map its route to the network equipment, review PoE switch capacity, plan the NVR and equipment spaces, and document every camera-to-port connection. Also coordinate pathway protection, environmental conditions, network access, and future service needs.
Approve the plan, not just the cable
A reliable network cabling project is defined by more than the product printed on the jacket. The important decisions include endpoint scope, copper or fiber selection, accessible pathways, equipment-room planning, separation from electrical work, compatible terminations, testing, labeling, documentation, security coordination, and local verification.
For residential, commercial, or industrial projects, start by turning your needs into a written endpoint and pathway plan. Then require the installer to explain the material choices, testing process, handoff documents, and permit responsibilities before work begins.
